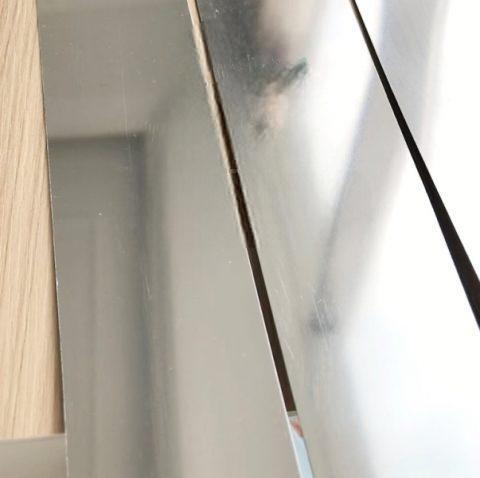

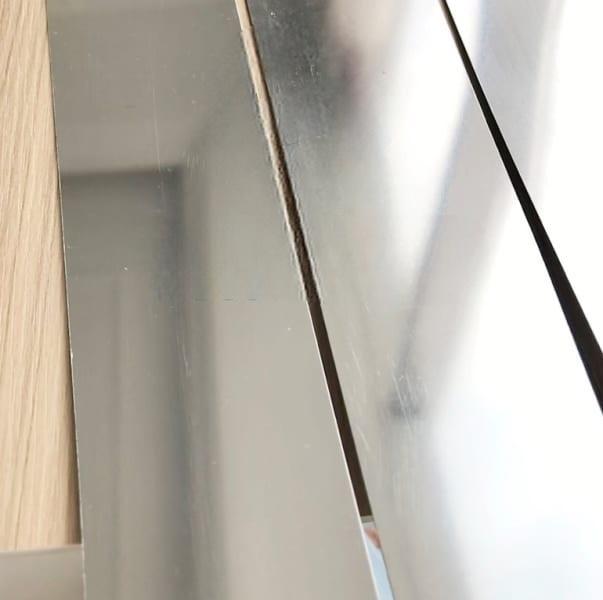

Molybdenum sheet is widely used in electronics, lighting, vacuum coating, medical equipment, semi-conductor glass fiber and electrode, heater, and heater shielding in vacuum resistance furnaces. Moly sheets can also be manufactured to boats for evaporation coating.
Non-Ferrous Crucible Inc. can provide molybdenum sheets, TZM alloy sheets, and Mo-La alloy sheets per request.
Properties of molybdenum metal

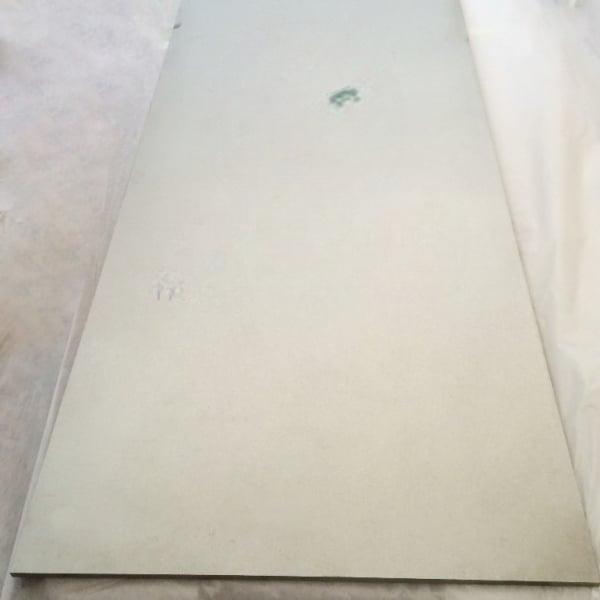

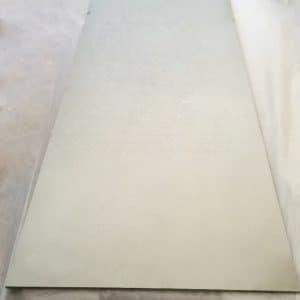

Mo sheets W/ chemical cleaned surface
-High Density: 10.3 g/cm³
-High Melting Point: 2625°C (4760 °F)
-Low Vapor Pressure
-High Tensile Strength
-Low Coefficient of Thermal Expansion
-Low Electrical Resistivity
-Good Machinability
-High Absorption Capacity
-High Elastic Modulus
Specification for our molybdenum sheet
| Shape | Sheet |
|---|---|
| Standard | ASTM B386, Type 361, Type 364 (TZM Alloy) |
| Purity | Mo≥99.95%, TZM Alloy, Mo-La Alloy |
| Process | Cold rolling, Hot rolling |
| Size | Thickness: 0.09mm~4.75mm Width: 150~760mm Length: Per customer’s need |
| Surface | Rolling, Chemically cleaned, Grinding (Thick>2.0mm) |
| Delivery condition | As rolled, Vacuum annealed |
Size range of Moly Sheet
| Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|
| 0.10-0.15 | 300 (+/-3.0) | 1000 (+/-5.0mm) |
| 0.12-0.20 | 400 (+/-3.0) | 1000 (+/-5.0mm) |
| 0.20-0.30 | 650 (+/-3.0) | 2540 (+/-5.0mm) |
| 0.30-0.50 | 650 (+/-3.0) | 2540 (+/-5.0mm) |
| 0.50-1.0 | 600 (+/-3.0) | 2400 (+/-5.0mm) |
| 1.0-2.0 | 600 (+/-3.0) | 2000 (+/-5.0mm) |
| 2.0-3.0 | 600 (+/-3.0) | 2000 (+/-5.0mm) |
| 3.0-4.75 | 600 (+/-3.0) | 2000 (+/-5.0mm) |
The thicker molybdenum rolling product is named the molybdenum plate.
Precision Machined Molybdenum Sheet
Edgetech is an expert in metallurgy and fabrication and offers customers a variety of molybdenum plate and sheet products made from unalloyed molybdenum, TZM Alloy, molybdenum-copper, and lanthanated molybdenum. Our fabrication processes include:

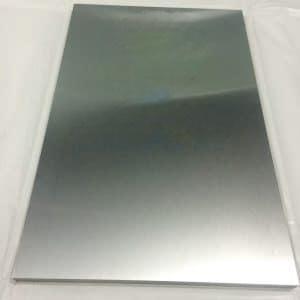

Molybdenum Plate
-Turning
-Milling
-Drilling
-Cutting
-Joining
-Forming
-Grinding
-Stamping
-EDM Machining

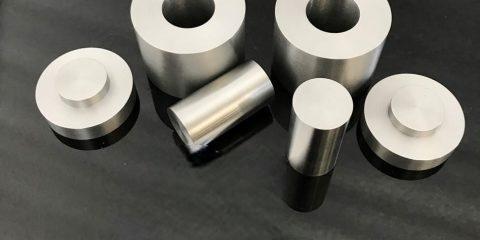

We can also provide a TZM alloy sheet and a Mo-La sheet. The price for pure Mo sheets is lower than TZM alloy sheets and Mo-La Alloy sheets causing the machining and sintering process.
Packaging for our Molybdenum sheets
The standard package for molybdenum is wooden crate so that goods can be protected during handling and transportation.
Please send us your specifications for the molybdenum sheet to inquiry.crucible@winnewtech.com.
