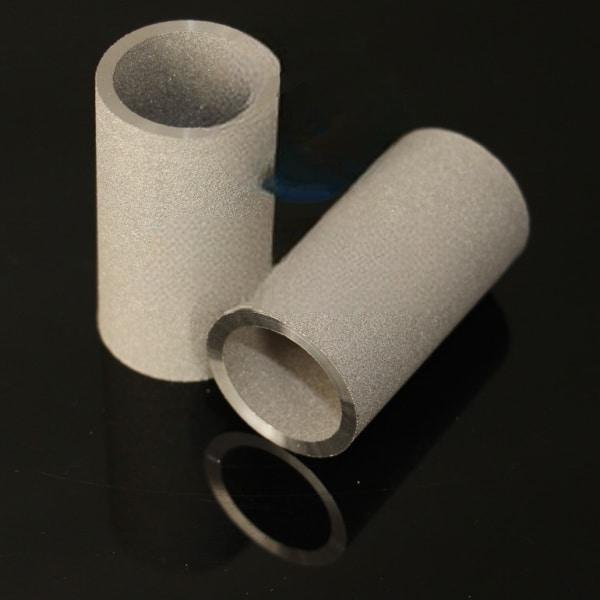

Porous Titanium Tube

We provide porous titanium tubes with a wide range of filtration precision and dimensions. We can carry out machining on sintered titanium tube, such as punching, cutting, etc. A porous titanium tube with one end closed is also available on request. Porous titanium is used as a filter in many fields, such as the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry, gas purification, etc.

Manufacture process for our porous titanium (sintered titanium)

Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

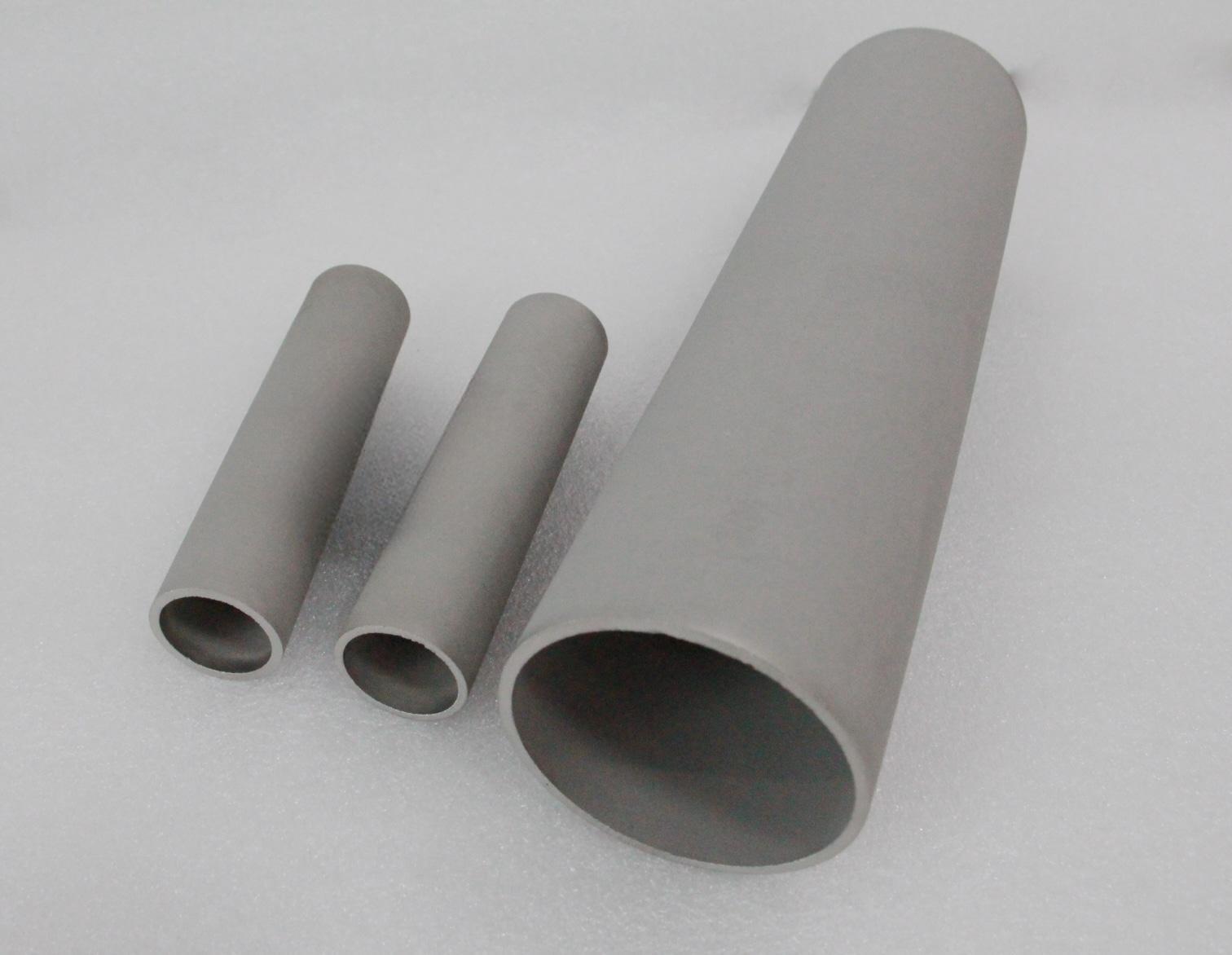

Porous Titanium tubing

Properties of porous titanium tube (sintered titanium):
1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be used up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, and antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, and can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.
8. Good anti-microbial ability.
9. The overall length of up to 1000 mm without welding.
10. Can be online regeneration, easy to clean, long life (several times to typically membrane cartridge)

Titanium filter assembly

Specifications of sintered titanium tubing and filter

Filtration precision: 0.45um─50um
(0.45 um, 1 um, 3 um, 5 um, 10 um, 20 um, 30 um, 50 um)
Porosity: 30%─40%
Pressure: 0.6Mpa
Temperature resistance: 300 ℃(wet)
Maximum Operating Pressure: 1Mpa
Tube dimension range: OD: 14-1000mm, WT: 2.5-3mm, Length: 100-1000mm

Available products of porous titanium (sintered titanium)

Porous titanium disc, sheet, tubing, tube with one end closed, plate,  filter assemblies, and other customized parts.

Please send us your request or drawings to inquiry.crucible@winnewtech.com.
