Shape Memory Effect: “Shape Memory” describes the restoration of the original shape of a plastically deformed sample upon heating.
Superelastic Effect: An elastic (reversible) response to an applied temperature, caused by a phase transformation between the austenitic and martensitic phases of a crystal.
Nitinol is a metal alloy, that exhibits two closely related and unique properties: shape memory and superelasticity. We provide both types of nitinol strips & foil.
Nitinol Foil-0,012inch

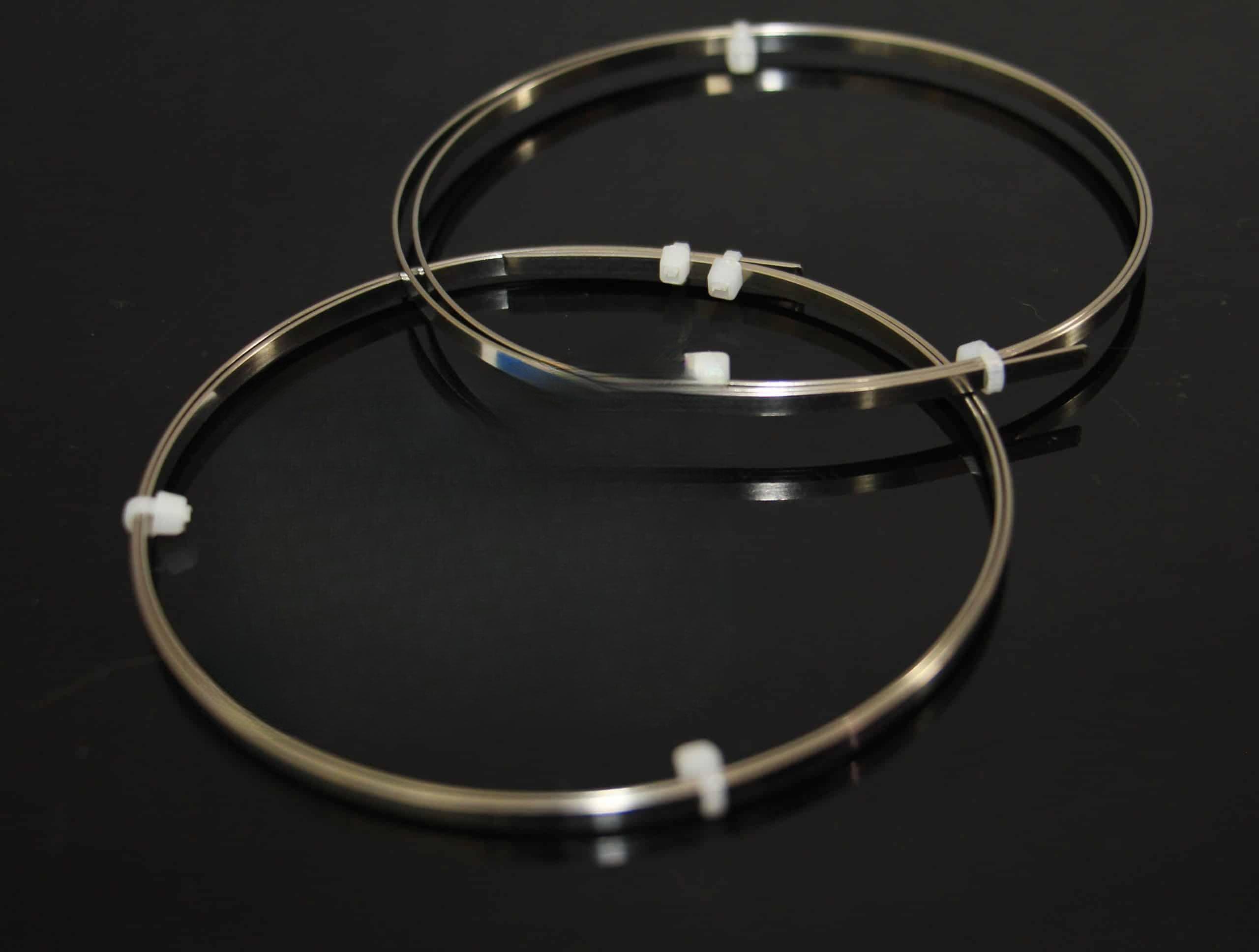

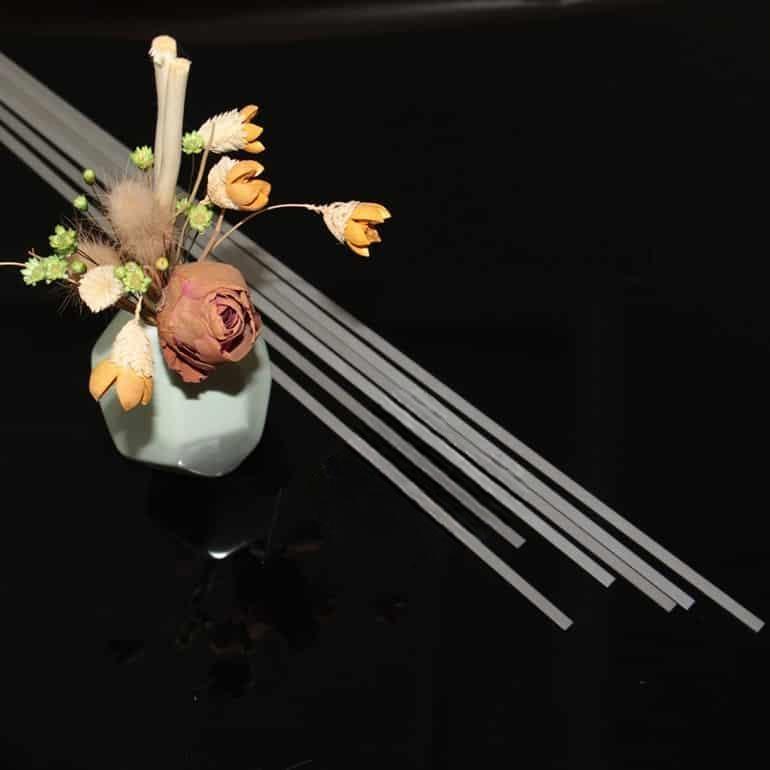

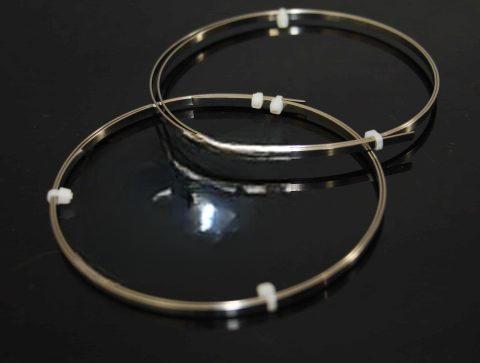

We offer Nitinol Strips (nickel-titanium alloy strip, shape memory alloy strip, superelastic alloy strip) for special applications, enabling unusual design characteristics while maintaining all of the capabilities of wire.
Our continuous-length nitinol strip is available in fully annealed or superelastic conditions, which works well in stamping, forming, and other secondary operations. Our strip & foil are manufactured to meet rigorous alloy composition, mechanical, and dimensional specifications.
Shape memory alloy and superelastic alloy strip Specifications
| Product Name | Nitinol Strip |
|---|---|
| Specification | ASTM F2063-12 |
| Af Temperature | -10°C to 120°C |
| Size | Thickness: 0.01”-0.04” Width: 0.024”-0.2” |
| Width to Thickness Ratio | 2 to 20 |
| Surface | Cold rolling surface, Pickled |
| Available Shape | Straight, Coils |

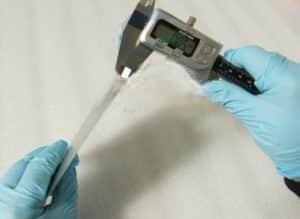

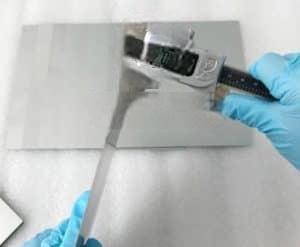

Nitinol Foil-0.05mm
We offer Nitinol foil (titanium nickel alloy foil) with 0.002″ thinnest thickness, specification ASTM F2063.
Our continuous-length nitinol foil is available in fully annealed or superelastic conditions, which works well in stamping, forming, and other secondary operations. Our foil is manufactured to meet rigorous alloy composition, mechanical, and dimensional specifications. A special process will be needed for nitinol foil with <0.08mm thick.
Shape memory alloy foil and superelastic foil specifications
| Product Name | Nitinol Foil |
|---|---|
| Specification | ASTM F2063-12 |
| Af Temperature | -10°C to 120°C |
| Size | Minimum thickness: 0.002” x ~100mm W x L |
| Surface | Cold rolling surface |
| Available Shape | Coils, sheet shape |
Packing information for our nickel-titanium alloy strip & foil
Our nitinol strip & foil are mostly packed in wooden crates, which can protect the products during transportation and handling. We can provide a vacuum pack for some high-precision nitinol parts. Cartons are used for small rolls of nitinol.
We can also program the custom shape when heating titanium nickel alloy strip & foil, please send us your request to inquiry.crucible@winnewtech.com for any needs on nitinol.
