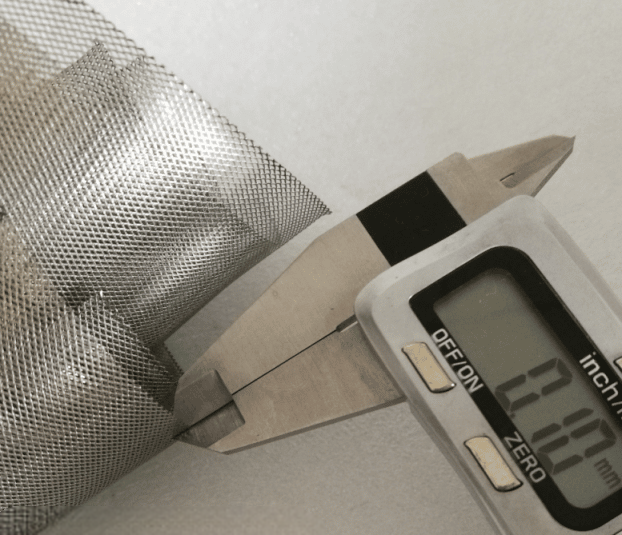

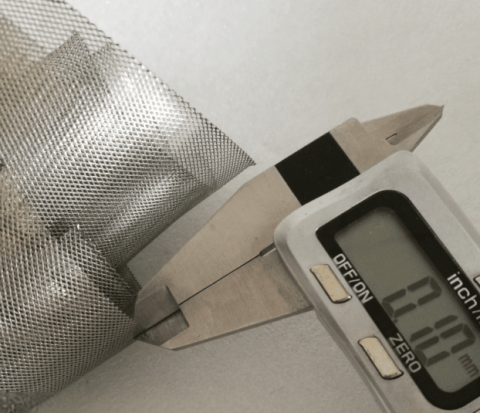

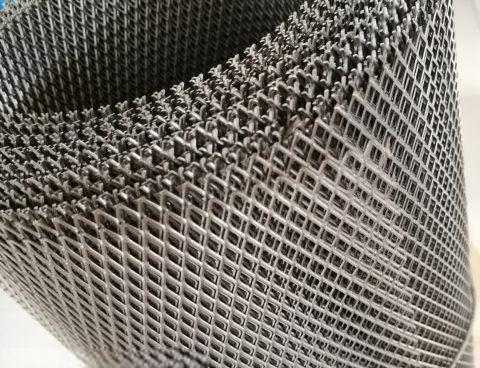

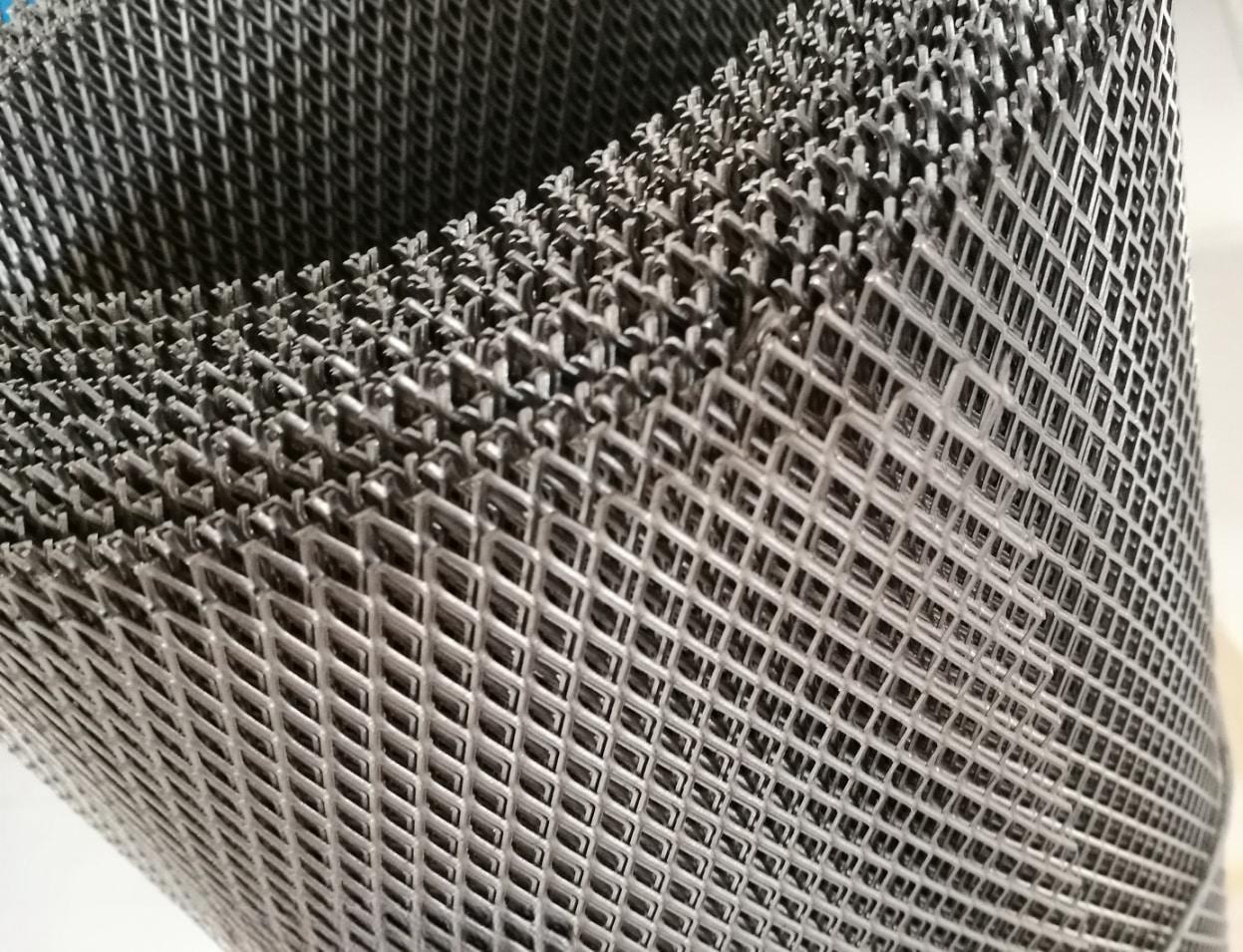

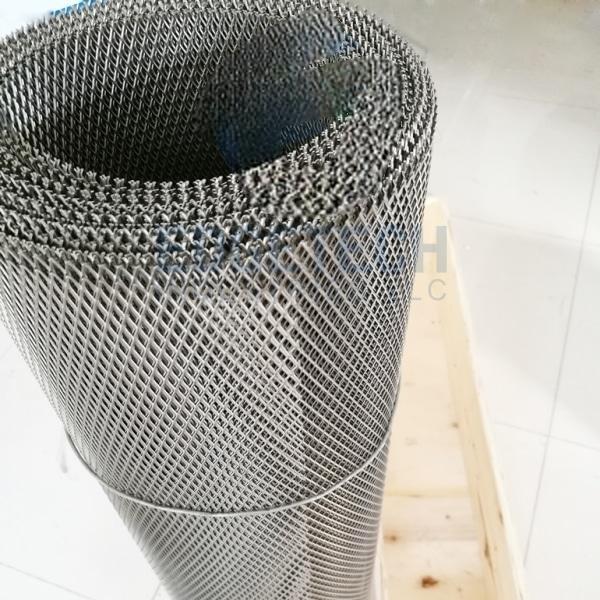

Titanium mesh (expanded mesh, and stamped mesh) is made by expanding and stamping sheet, the material is ASTM B265 specified commercial pure titanium. The strength of alloyed titanium is too high to be stamped or expanded.

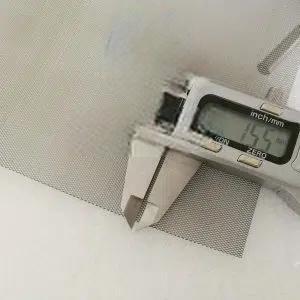

Mesh with small openings
The width of the expanded and stamped titanium mesh we can provide will be the same as the sheet, the length of the stamped mesh is the same as the sheet while the length of the expanded mesh depends on the opening & sheet size.
Titanium has two most useful properties, unique corrosion resistance and the highest strength-to-weight ratio of any metal. Titanium materials can be used in many fields, such as chemical and electronic industry. It is mostly used as a titanium anode and filter element in chlor-alkali industry and other chemistry industries.
Specifications for our mesh
Item Name | Titanium Expanded Mesh | Titanium Stamped Mesh |
---|---|---|
Material | Gr1, Gr2 (CP Ti) | Gr1, Gr2 (CP Ti) |
Processing | Expanded | Stamped |
Opening shape & size | Diamond Openings, per the following specifications | Circular Holes or another custom shape. Opening size larger than Titanium sheet thickness. |
Overall size | Per following specifications | Max: 1m width x 2m Length Maximum |
Opening size and mesh overall size for expanded mesh
Sheet Thickness | Width x Length | Mesh Open Size | Mesh Stem |
---|---|---|---|
0.3mm ~0.8mm 0.8mm~2.0mm |
1000mm x 2000mm 1000mm x 3000mm |
50mm x 25mm | 2.0mm |
20mm x 10mm | 2.0mm | ||
20mm x 7mm | 2.0mm | ||
16mm x 8mm | 1.5mm-2.0mm | ||
15mm x 5.5mm | 1.5mm-2.0mm | ||
13mm x 7mm | 1.5mm-2.0mm | ||
12.5mm x 4.5mm | 1.5mm-2.0mm | ||
12.5mm x 6mm | 1.5mm-2.0mm | ||
10mm x 5mm | <1.0mm | ||
8mm x 5mm | <0.8mm | ||
6mm x 3mm | <0.6mm | ||
4.6mm x 2.5mm | <0.6mm | ||
4mm x 3mm | <0.3mm | ||
3mm x 2mm | <0.3mm |
Besides the listed specifications, other opening sizes and dimensions can be customized. We also provide titanium mesh with square and rectangle openings besides diamond opening mesh. A thin titanium mesh of 0.1mm is available now. Please send your specifications to inquiry.crucible@winnewtech.com.
Packing

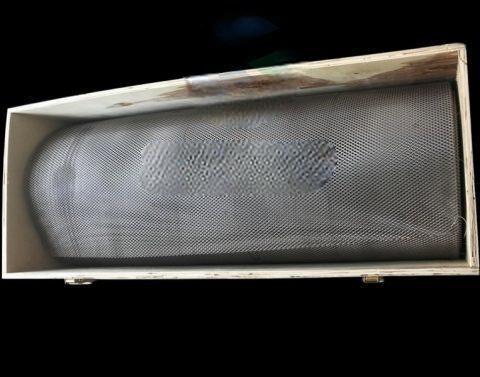

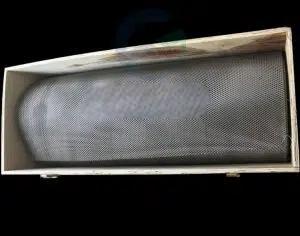

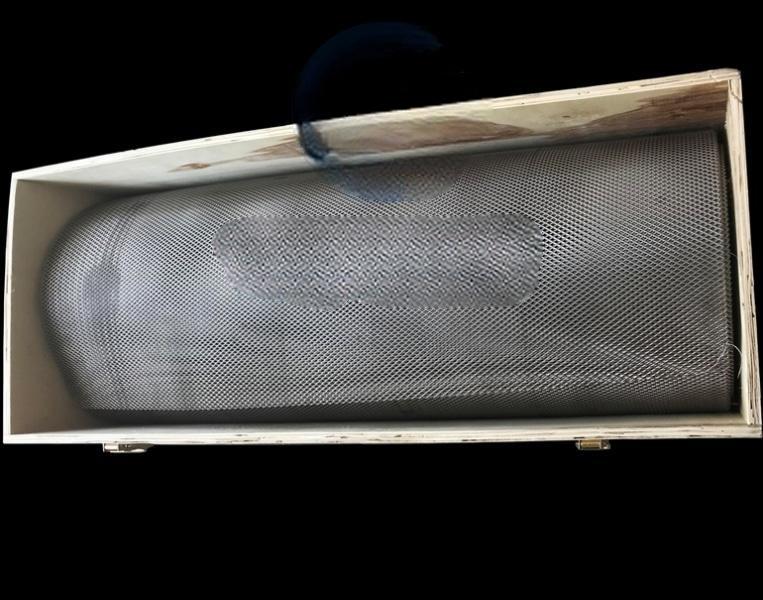

Titanium mesh packaging is wooden box packaging, no need for too much cushioning material inside. Our products will have clear indications and installation packaging.
