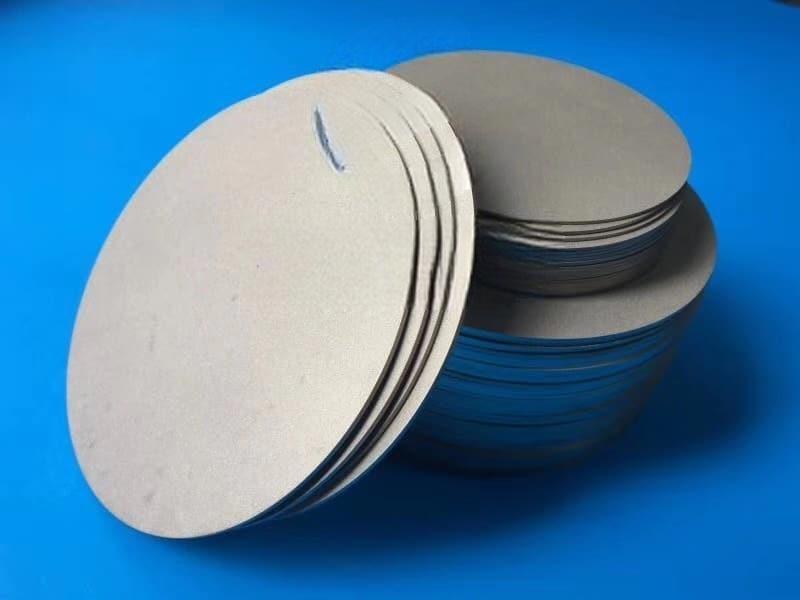

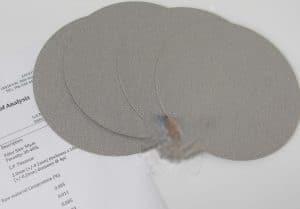

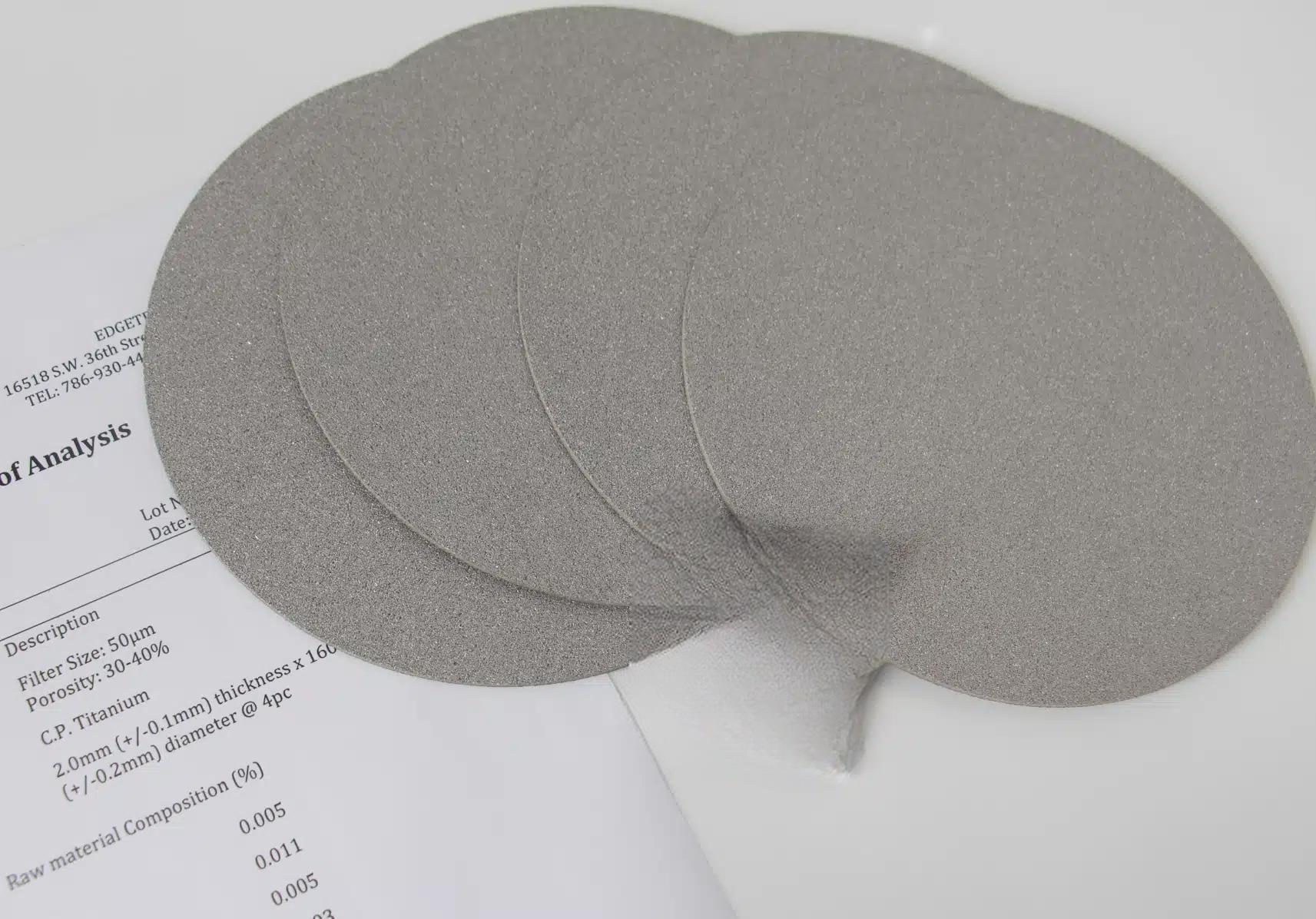

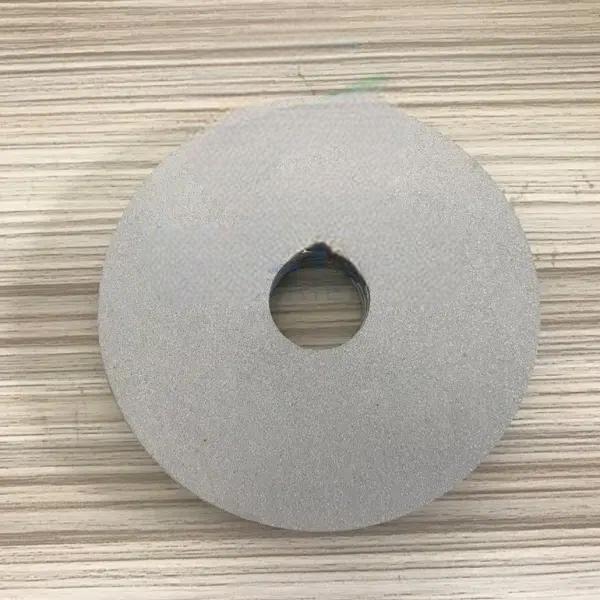

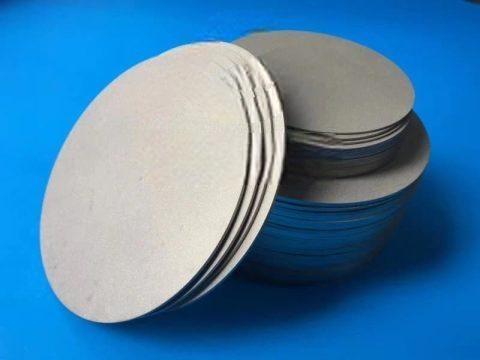

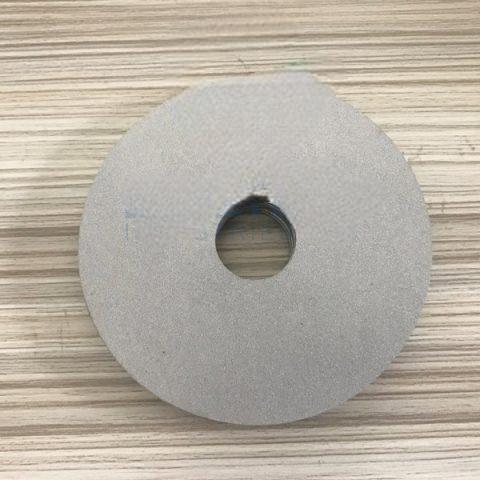

Porous Titanium Disc

Sintered titanium product is used as filters in many fields, such as the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry, and gas purification, etc. Porous titanium disc is used as a Gas Diffusion Layer in new-generation fuel cells (PEMFC).

Manufacture process for our porous titanium (sintered titanium)

Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

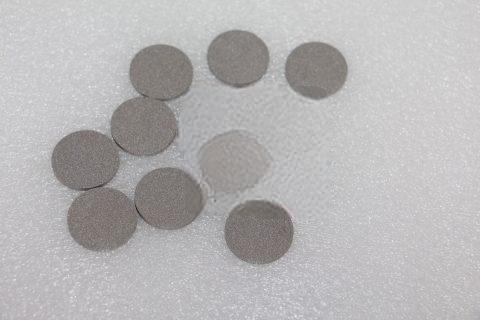

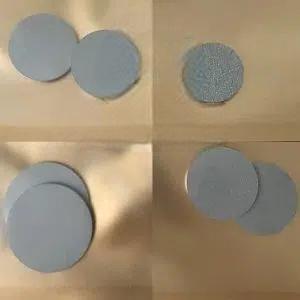

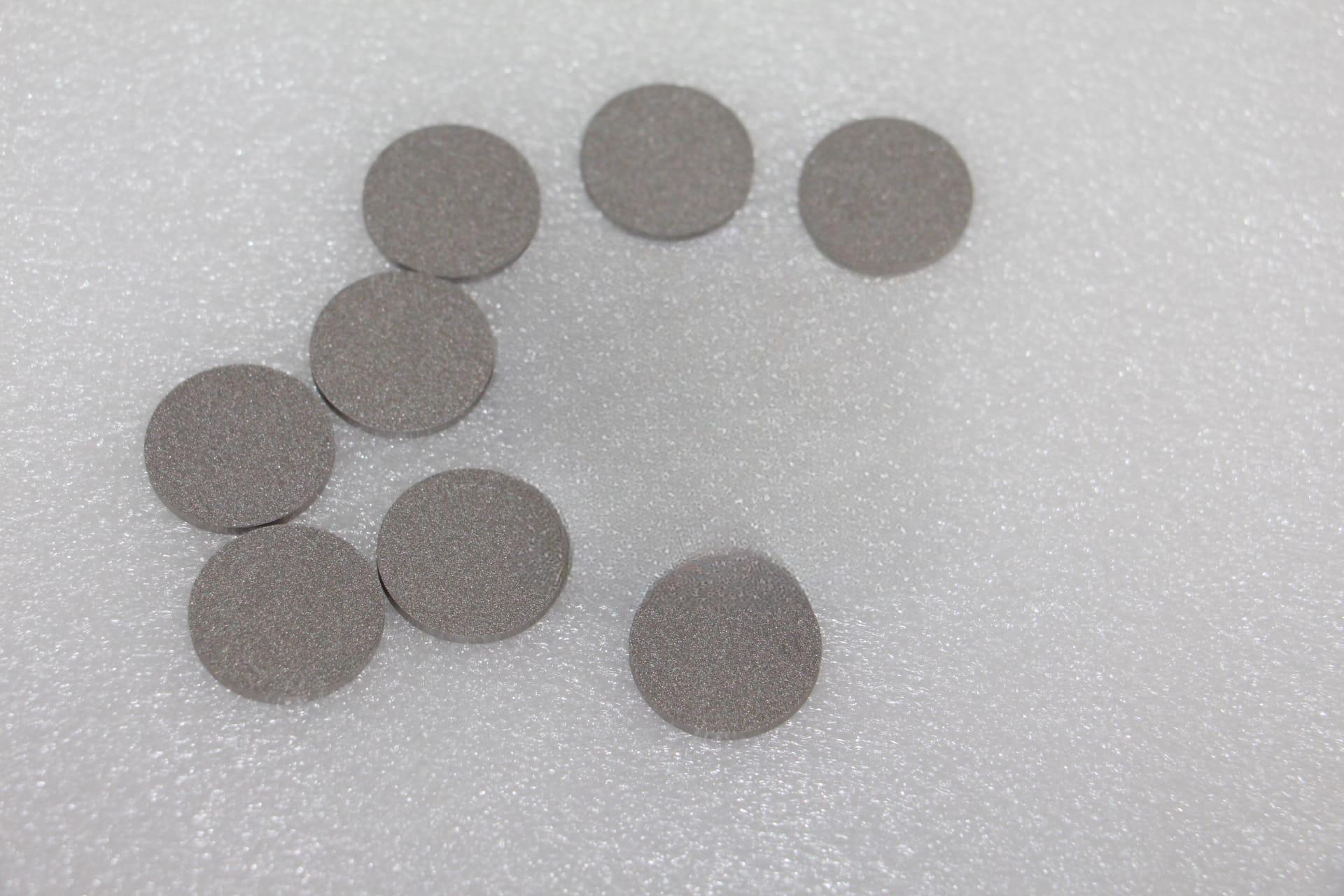

Porous Titanium Discs

Properties of porous titanium disc (sintered titanium):
1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be used up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, and antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, and can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.
8. Good anti-microbial ability.
9. The overall length of up to 1000 mm without welding.
10. Can be online regeneration, easy to clean, long life (several times to typically membrane cartridge)

Application of sintered titanium disc.
-Sintered titanium and SS disc can be used as gas diffusion layer in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).
-It can be assembled as a titanium filter and can be used for filtration under high temperatures & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as an anode

Specifications of sintered titanium disc (filter)

Filtration precision: 0.45um─50um
(0.45 um, 1 um, 3 um, 5 um, 10 um, 20 um, 30 um, 50 um)
Porosity: 30%─40%
Pressure: 0.2Mpa/cm²
Temperature resistance: 300 ℃(wet)
Maximum Operating Pressure: 0.2Mpa/cm²
Disc dimension range: 0.8-2.8mm Thickness x 20-320mm Diameter

Available products of porous titanium (sintered titanium)

Porous titanium disc, sheet, tubing, tubing with one end closed, plate, filter assemblies, and other customized parts.

We provide sintered titanium discs with a wide range of filtration precision and dimensions. We can also carry out machining on porous titanium, such as punching, cutting, etc. Platinum-coated porous titanium products are available on request. Please send us your request or drawings to inquiry.crucible@winnewtech.com.
