Non-Ferrous Crucible Inc. manufactures nitinol wire (nickel-titanium alloy wire) from various grades of nickel-titanium alloy commonly used in medical applications as well for other various applications.
Nitinol is a metal alloy, that exhibits two closely related and unique properties: shape memory and superelasticity. We provide nitinol wire with both properties.

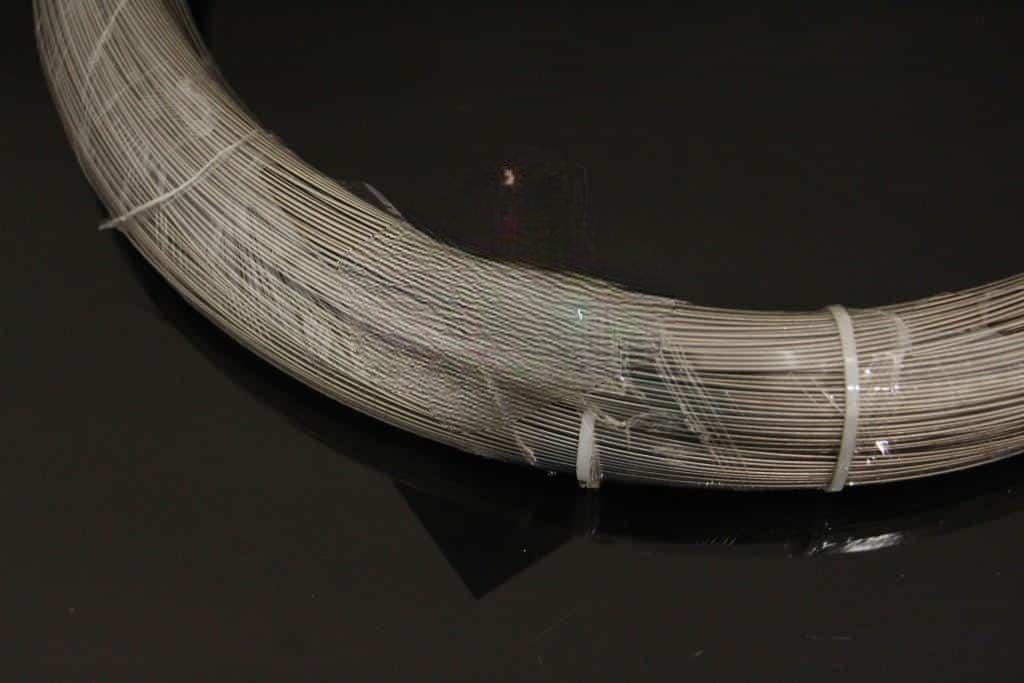

Superelastic wire
Medical grade nitinol material comprises nickel and titanium in nearly equal atomic weight percentages; per ASTM F2063, nickel content of 54.5-57 wt% is specified for use in surgical implants. Nitinol material with different compositions and phase transformation temperatures can be used for other applications.
Specifications for our shape memory wire and superelastic alloy wire
| Product Name | Nitinol wire |
|---|---|
| Specification | ASTM F2063-12 |
| Af Temp. | -10°C to 120°C |
| Size | 0.004”-0.2” Diameter x L Regular wire, 0.1mm min diameter |

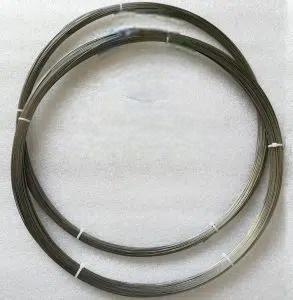

| Surface | Black, Pickled, Polished (Dia.>0.04”) |

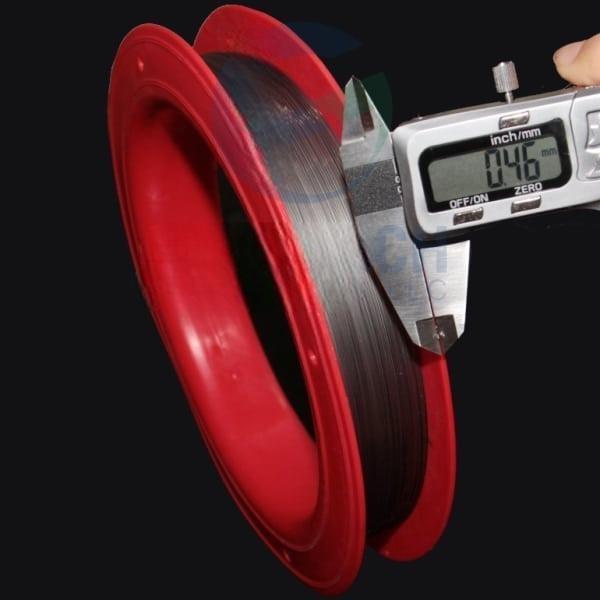

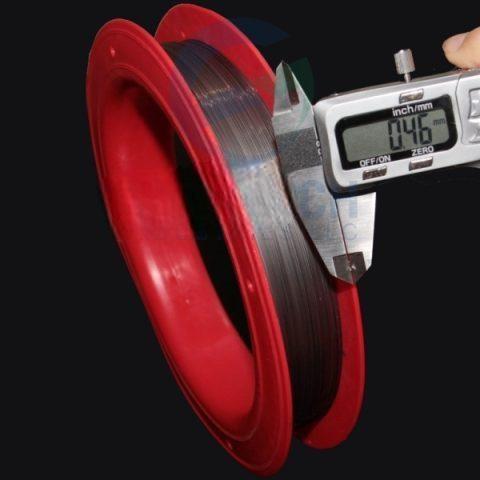

| Available Shape | Straight, Coils, On Spools |
| Applications | Dental braces, Stent, Fishing wire, Springs, etc. |
| Other wire type | Square wire, rectangular wire, Multi-strand nitinol wire, and other customized shape |

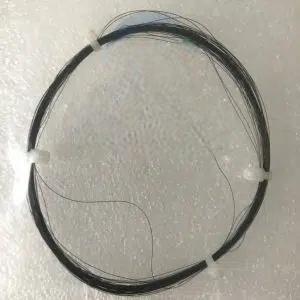

Thin/Fine Shape Memory Wire
We provide nitinol round wire, and flat wire with different Af (-10°C to 120°C). We now have the capacity of making the wire maintain super-elasticity at -10°C. This wire can be made into spring.
The finest wire we can make for muscle wire (also called shape memory actuator wire) is
0.02mm, nitinol muscle wire is an important part of robotics applications.
Nitinol fishing wire is a superelastic alloy that can be stretched over ten times the length of ordinary steel leaders without permanent deformation. Any experienced angler knows the frustration of a kinked leader.
Sometimes it seems like the steel leader is only good for one catch, after which the wire is out of commission from bends and kinks. No one wants to re-tie or change rigs on a rocking boat when you could be fishing! Now you can cast your bait back in the water and catch another! With our fishing wire, your day starts and ends with the same leader. We can provide Af=-10℃ or even lower nitinol (Nickel titanium alloy) wire for low-temperature fishing.
Fine Nitinol wire (Super elastic at room temperature)
Diameter: 0.025mm-0.1mm
Af temperature: 10+/-10℃, 17+/-7℃, 25+/-5℃
Specifications: ASTM F2063-18
Delivery Status: Straightened super-elastic (SE) and Cold worked (CW)
Shape: Round, Square/Flat, Ropes
Surface State Options: Black, Light Oxide, Cleaned, Ground
Nitinol Flat Wire

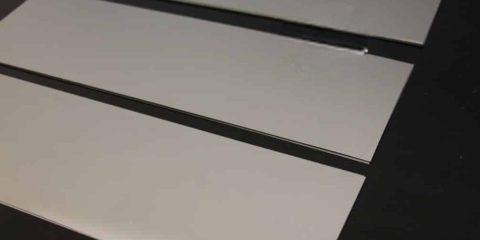

Nitinol Flat Wire is made by rolling from round wire or cutting from a nitinol strip.
Width-thickness ratio: γ, Doable range: 2<γ≤7.
Dimensions and Tolerances (Width: W, Thickness: T):
| Thickness | 0.025-0.05mm | 0.05-0.8mm |
|---|---|---|
| Tolerance | +/-0.005mm | +/-0.1mm |
| Width | 0.1-2.5mm | +/-0.1mm |
| Tolerance | 0.076-0.1mm | +/-0.01mm |
Other parameters can be discussed with us.
Shape: Nitinol Flat Wire, Nitinol Square Wire

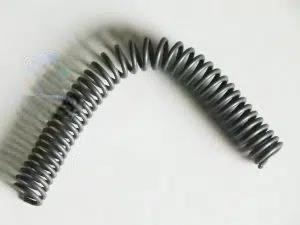

Nitinol Spring
Af temperature: 10+/-10℃
Mechanical properties
| UTS | Elongation | UPS | Strain |
| ≥1100Mpa | ≥9% | ≥480Mpa | ＜0.5 |
Surface State Options: Black, Light Oxide, Oxide free
Packing information for our nickel-titanium alloy wire
Our nitinol wire is mostly packed in wooden crates, this can protect the products during transportation and handling.

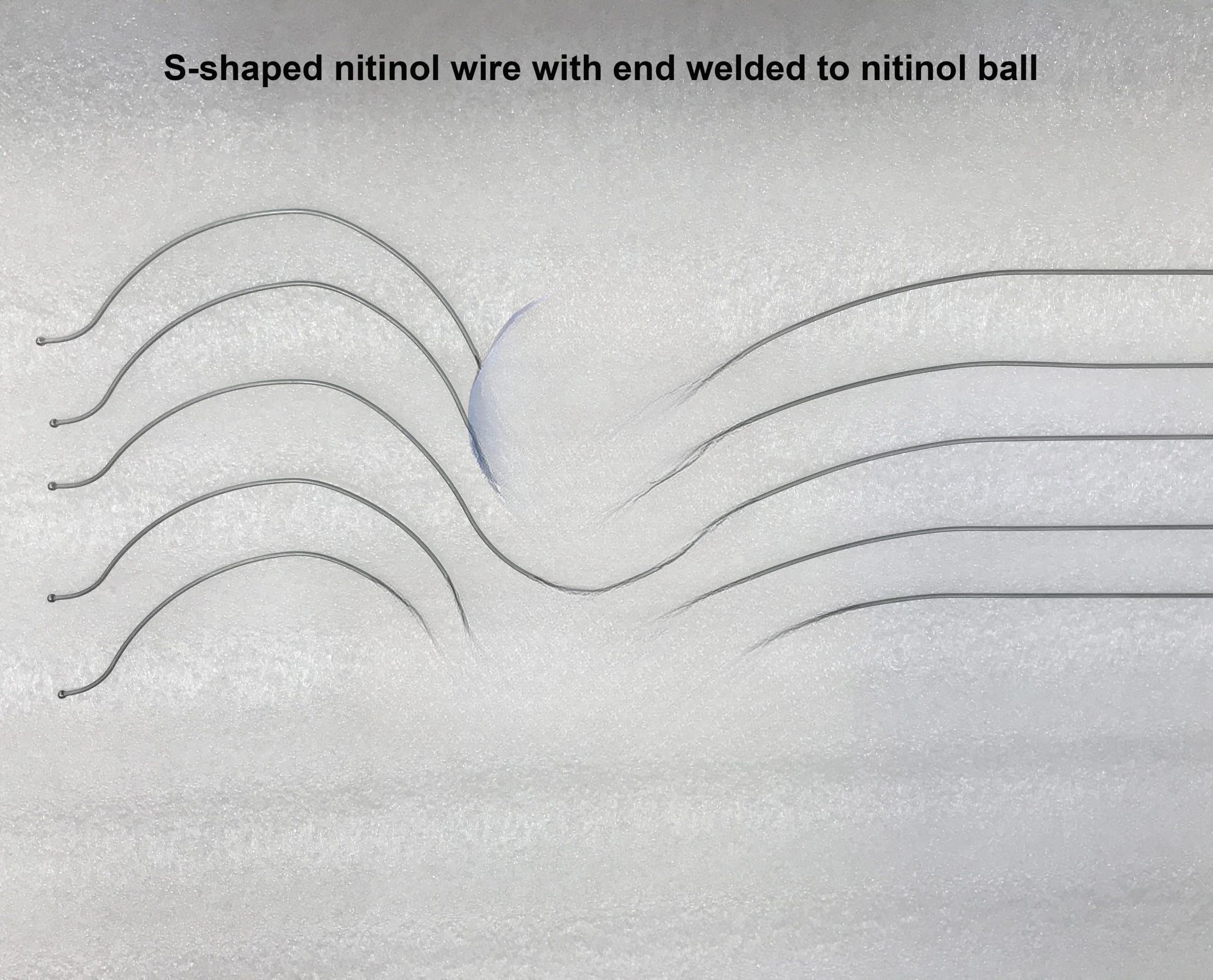

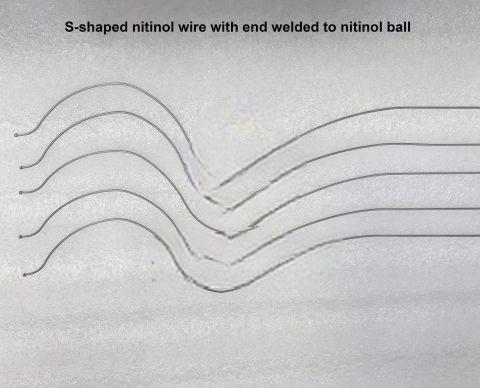

We can also program custom shapes when heating nitinol wire,
To get a quiet quote, transition temperature, thickness, quantity, and surface requirements are needed. Click Here to submit your inquiry.
