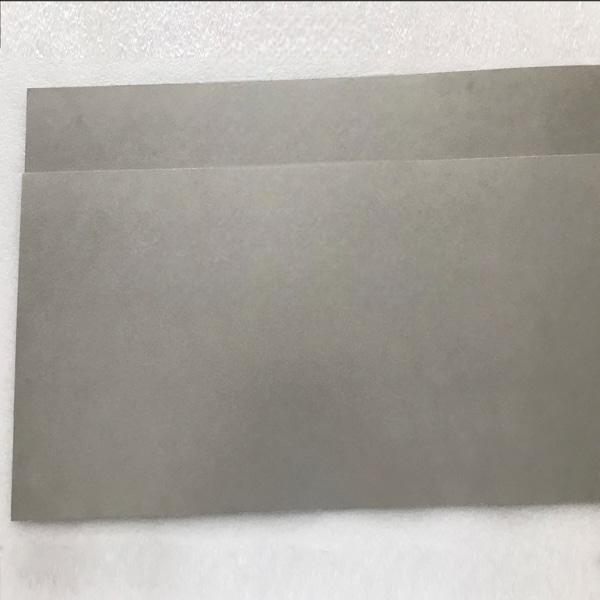

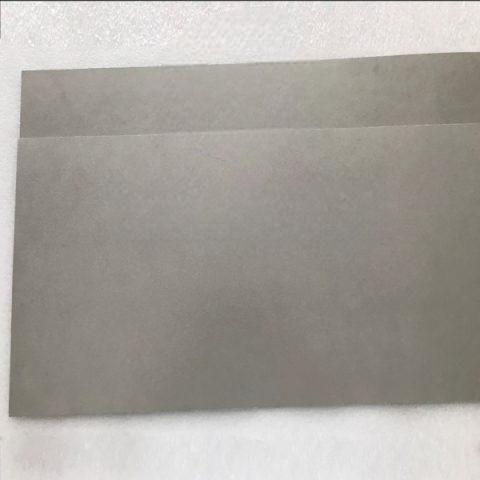

Porous Titanium Sheet

Sintered titanium (Porous titanium sheet) product is used as filters in many fields, such as the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry gas purification, etc. A porous titanium sheet is used as a Gas Diffusion Layer in new-generation fuel cells (PEMFC).

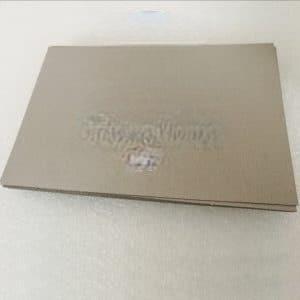

Sintered Titanium Sheer

Manufacture process for our sintered titanium sheet

Raw titanium powder preparation—Cold isostatic pressing—Sintering at high temperature & vacuum-Machined to size-Assembled to filter if required

Properties of porous titanium sheet (sintered titanium):
1. Uniform structure, narrow pore size distribution, high separation efficiency.
2. High porosity, low filtration resistance, high penetration efficiency.
3. High-temperature resistance, normally can be used up to 280 degrees.
4. Good chemical stability, acid and alkali corrosion, and antioxidant properties.
5. No particle shedding, no secondary pollution to the media, suitable for food hygiene and pharmaceutical GMP requirements.
6. Good mechanical properties, and can be used in suction & pressure filtration.
7. Low-pressure drop, small footprint, large flow.
8. Good anti-microbial ability.
9. The overall length of up to 1000 mm without welding.
10. Can be online regeneration, easy to clean, long life (several times to typically membrane cartridge)

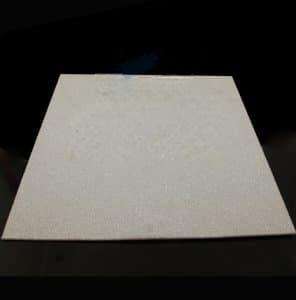

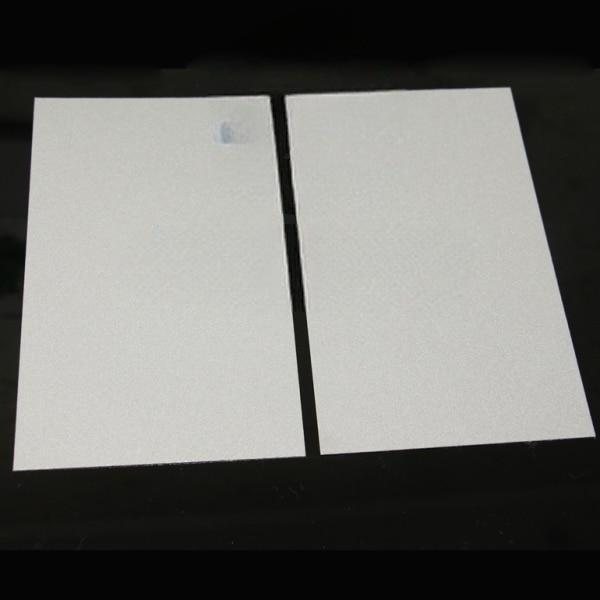

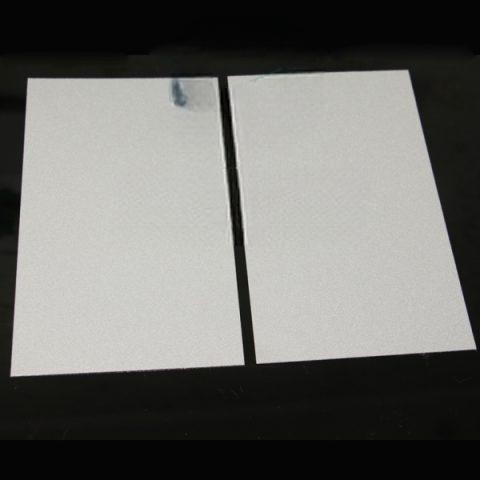

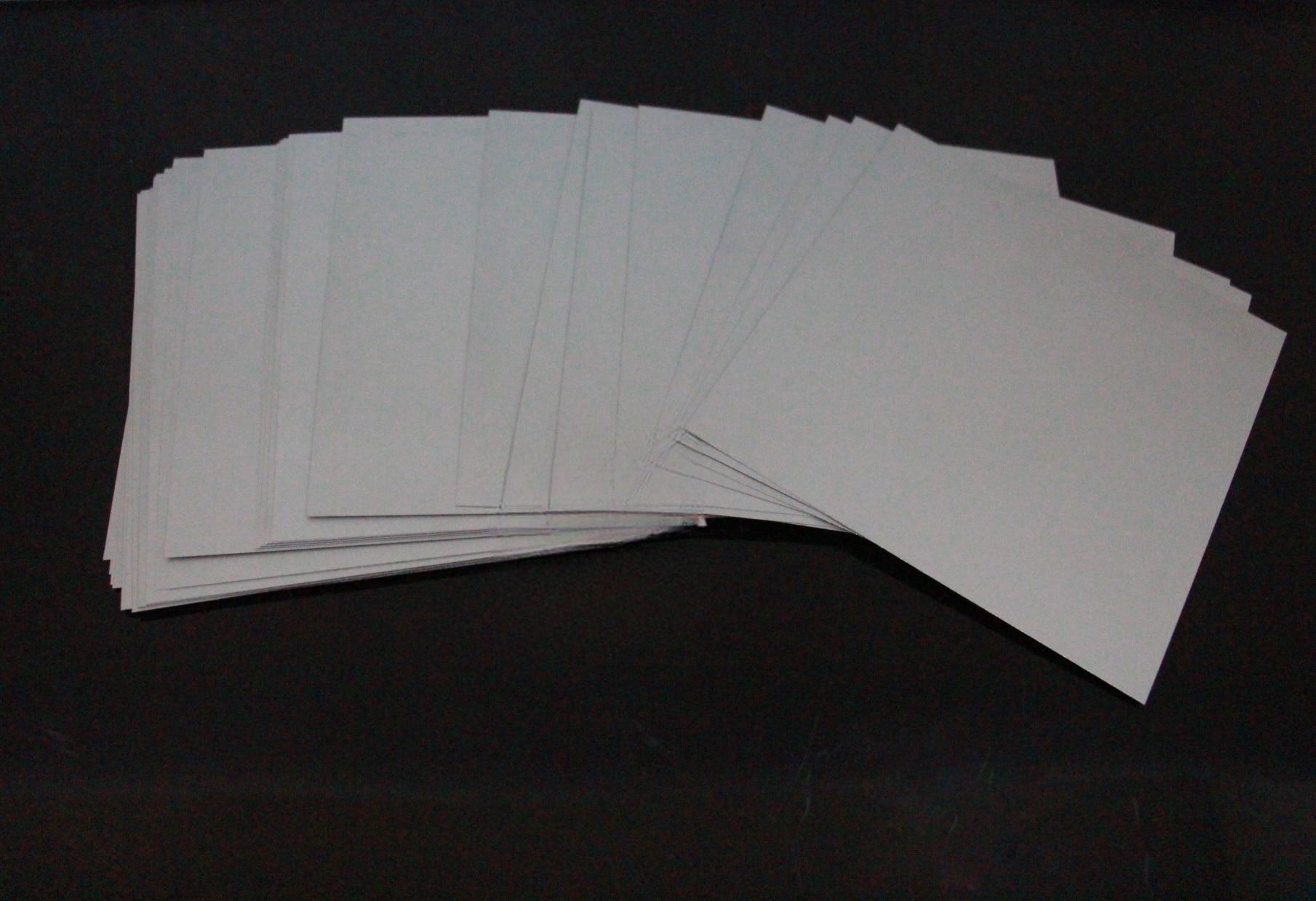

Porous Ti Sheets

Application of porous titanium.

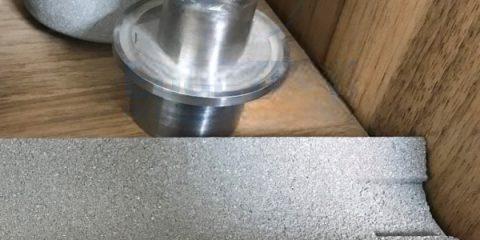

-Sintered titanium & SS  can be used as gas diffusion layer in Polymer-Electrolyte-Membrane Fuel Cells (PEMFC).

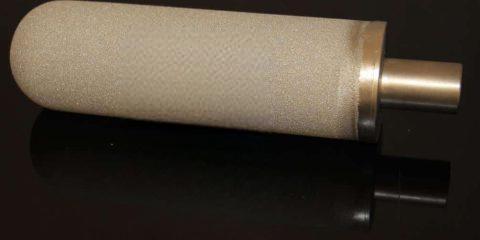

-Porous Titanium sheets can be assembled as titanium filters and can be used for filtration under high temperatures & corrosive environments.
-Porous Titanium can be coated with Pt and others, which can be used as an anode

We provide porous titanium sheets with a wide range of filtration precision and dimensions. We can also carry out machining on porous titanium sheets, such as chamfering, punching, cutting, etc.

Specifications of porous titanium (sintered sheet)

Filtration precision: 0.45um─50um
(0.45 um, 1 um, 3 um, 5 um, 10 um, 20 um, 30 um, 50 um)
Porosity: 30%─40%
Pressure:  0.2Mpa/cm²
Temperature resistance: 300 ℃(wet)
Maximum Operating Pressure: 0.2Mpa/cm²
Sheet dimension range: 0.8-2.8mm Thickness x <330mm Width x <800mm Length

Available products of porous titanium (sintered titanium)

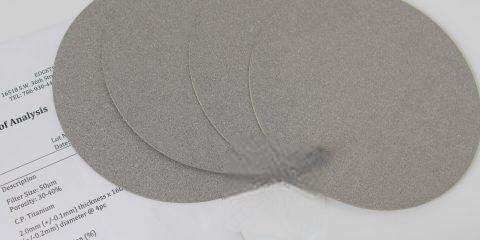

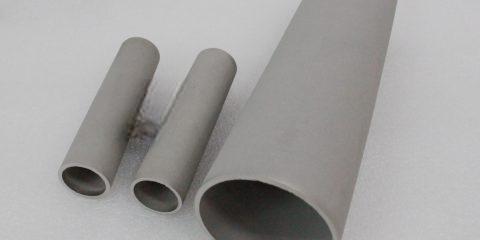

Disc, sheet, tubing, tubing with one end closed, plate, titanium filter assemblies, and other customized parts.

We can also provide platinum-coated porous titanium products on request. Please send us your request or drawings to inquiry.crucible@winnewtech.com.
